# Lab 5 - NAT & Internet

# Lab 5 - NAT & Internet

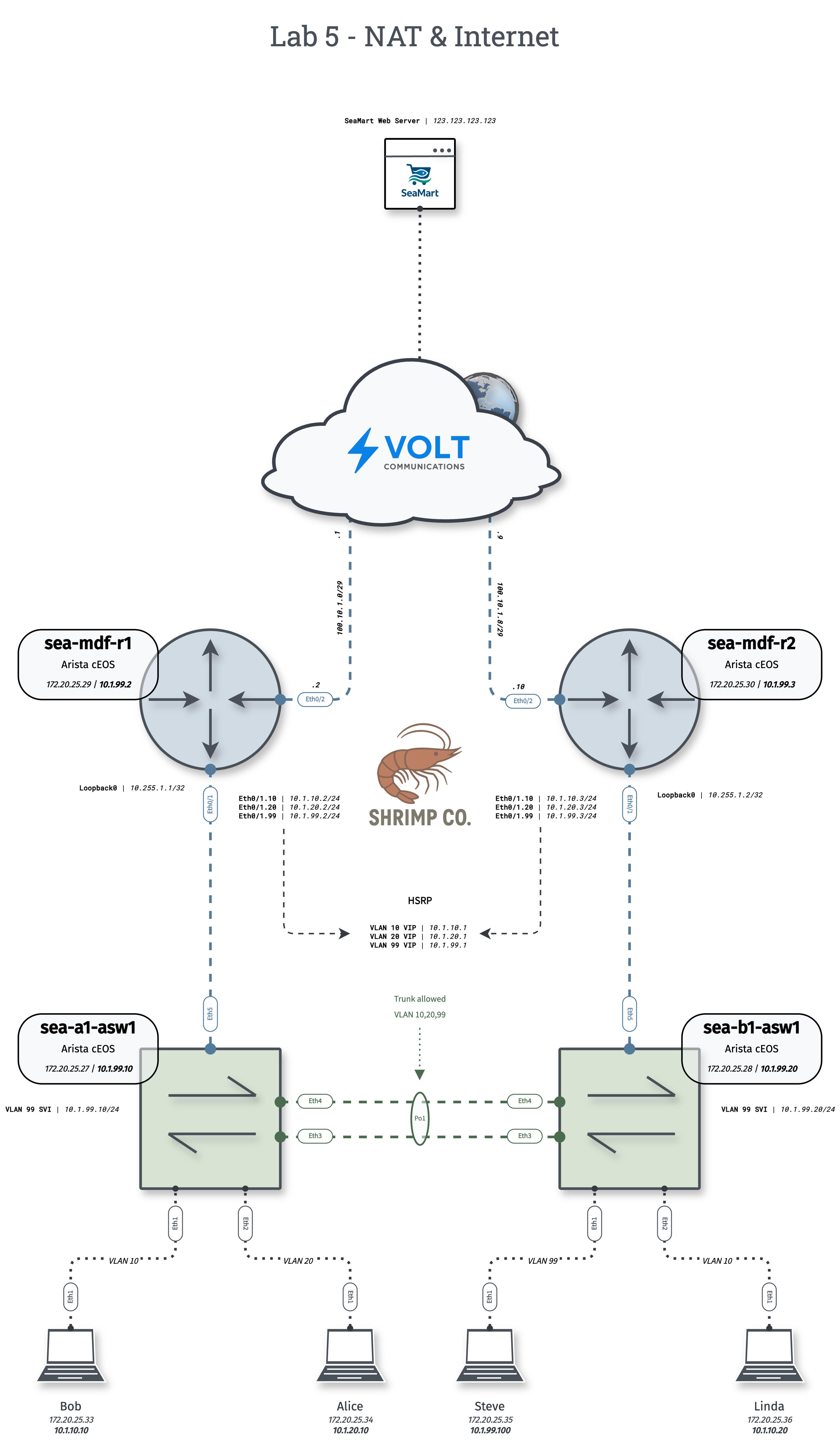

Shrimp Co. has connected to the internet via Volt Communications. Configure NAT so internal hosts can reach the SeaMart web server while maintaining internal addressing.

Tip: Individual topology files are available in the diagrams folder on my Github

# Configuration Tasks

# Layer 2 Configuration

Configure VLAN databases, port-channels, trunk links, and SVIs as done in previous labs to ensure L2 connectivity between access switches and the MDF routers. These tasks are assumed and not explicitly outlined below.

# 1. IP Addressing & Reachability

  • Configure the WAN interfaces on sea-mdf-r1 and sea-mdf-r2:
    • Eth2 on both routers
    • Use provider-assigned space: 100.10.1.0/29
    • sea-mdf-r1: 100.10.1.2/29
    • sea-mdf-r2: 100.10.1.3/29
    • ISP gateway: 100.10.1.1
  • Verify ping 100.10.1.1 works from both routers

# 2. NAT Configuration (Static NAT)

  • Configure static NAT on sea-mdf-r1 to allow internal host Steve (10.1.99.100) to access the internet with a public IP:
    • Inside IP: 10.1.99.100
    • Outside IP: 100.10.1.2
  • Ensure return traffic is translated correctly

# 3. Default Routes

  • Configure default route on sea-mdf-r1:

    ip route 0.0.0.0/0 100.10.1.1

  • Configure Steve with a default gateway of 10.1.99.1

# 4. Test Connectivity

  • From Steve, access the SeaMart web server (curl http://123.123.123.123)
  • Use tcpdump or tshark on sea-mdf-r1 to verify NAT translations

# Success Criteria

  • Steve can curl the SeaMart server by IP
  • NAT translation occurs correctly (seen via show ip nat translations or debug output)
  • sea-mdf-r1 has connectivity to the upstream ISP
  • Configure an ACL to only allow NAT for VLAN 99
  • Block Bob or Alice from accessing the internet
  • Set up VRRP between sea-mdf-r1 and sea-mdf-r2 for failover
  • Create a loopback interface on Steve, then configure NAT for that address too
  • Use tcpdump to observe NAT behavior at multiple points (inside interface vs outside)

# Verification Commands

# Check NAT table
show ip nat translations

# Debug NAT events
debug ip nat

# Ping default gateway and internet server
ping 100.10.1.1
ping 123.123.123.123

# Check routing table
show ip route

# Check connectivity
curl http://123.123.123.123

# Trace path
traceroute 123.123.123.123

# Monitor packets
sudo tcpdump -i eth1 -n
