# Lab 4 - Basic L2-L3 Redundancy

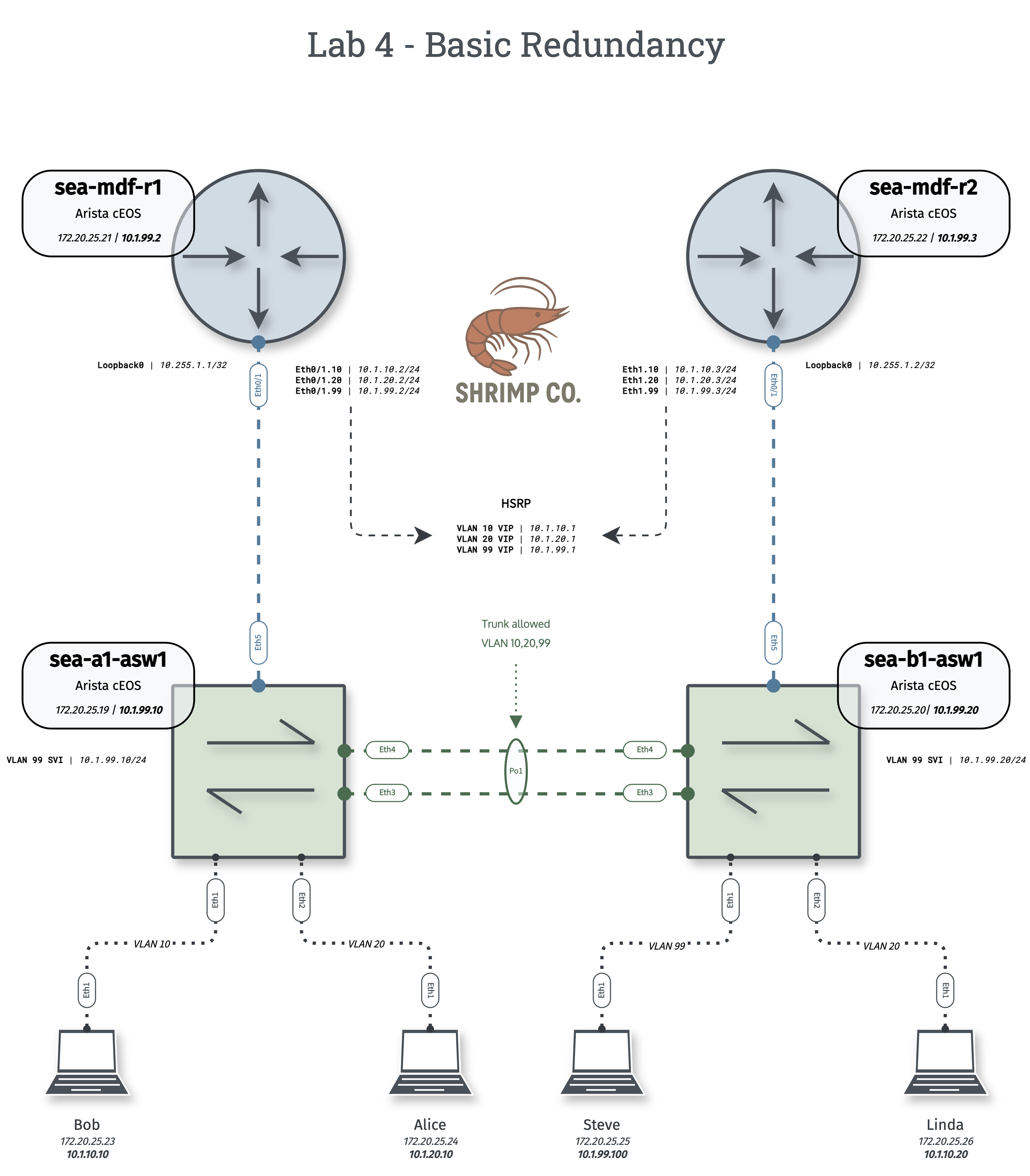

As Shrimp Co. grows, network reliability becomes critical. Deploy HSRP and EtherChannel to eliminate single points of failure in your network design.

Tip: Individual topology files are available in the diagrams folder on my Github

# 🆕 New Concepts Introduced

  • Redundant Layer 3 gateways with VRRP
  • EtherChannel bundling and trunking
  • VRRP failover testing with preemption
  • Basic traffic filtering with ACLs
  • Optional: VRRP authentication & interface tracking

# Configuration Tasks

# 1. Host & Access Port Configuration

Host VLAN Assignment IP Address
Bob 10 (Sales) 10.1.10.10/24
Alice 20 (Engineering) 10.1.20.10/24
Steve 99 (IT) 10.1.99.100/24
Linda 10 (Sales) 10.1.10.20/24

# 2. Switch Configuration

  • Configure VLANs per previous labs
  • Bundle Eth3 and Eth4 on both switches as an LACP port-channel in mode active
    • Allow all VLANs to traverse the link
  • Configure both switches with a SVI
  • Allow VLANs to reach router sub-interfaces

# 3. Router Configuration

  • Loopback Interfaces:
    • sea-mdf-r1: Loopback0 with IP 10.255.1.1/32
    • sea-mdf-r2: Loopback0 with IP 10.255.1.2/32
  • Subinterfaces on both routers, IP addresses according to diagram
    • Eth1.10 (VLAN 10)
    • Eth1.20 (VLAN 20)
    • Eth2.99 (VLAN 99)

# 4. VRRP Configuration (sea-mdf-r1 & sea-mdf-r2)

Configure VRRP on the physical subinterfaces to provide redundant gateways:

  • VRRP Group Numbers: Use VRRP group numbers that match the VLAN IDs (e.g., VLAN 10 uses Group 10).
  • Virtual IP Addresses (VIPs):
    • VLAN 10: 10.1.10.1/24
    • VLAN 20: 10.1.20.1/24
    • VLAN 99: 10.1.99.1/24
  • Active/Standby Roles (via Priority):
    • sea-mdf-r1: Set higher priority for VLANs 10 and 99.
      • VLAN 10: Master (e.g., Priority 120)
      • VLAN 20: Backup (e.g., Priority 90)
      • VLAN 99: Master (e.g., Priority 120)
    • sea-mdf-r2: Set higher priority for VLAN 20.
      • VLAN 10: Backup (e.g., Priority 90)
      • VLAN 20: Master (e.g., Priority 120)
      • VLAN 99: Backup (e.g., Priority 90)

# Success Criteria

  • Inter-VLAN Connectivity:
    • Bob can ping Alice (VLAN 10 to VLAN 20).
    • Linda can ping Steve (VLAN 10 to VLAN 99).
  • Gateway Reachability: All hosts can ping their respective Virtual IP (VIP) gateways.
  • VRRP State Verification:
    • sea-mdf-r1 is the VRRP Master for VLANs 10 and 99.
    • sea-mdf-r2 is the VRRP Master for VLAN 20.
    • Verify VRRP status is "Master" or "Backup" for all groups on both routers.
  • EtherChannel Status: The inter-switch Port-Channel (Po1) is operational and bundling interfaces.
  • Redundancy Test:
    • Shut down the active VRRP interface on sea-mdf-r1 for VLAN 10; verify sea-mdf-r2 becomes Master for VLAN 10, and Bob can still ping his gateway and Alice.
    • Bring the interface back up and verify sea-mdf-r1 preempts and becomes Master again.
  • Configure VRRP authentication (e.g., plaintext or MD5) on all groups.
  • Configure routers with a username other than admin and an encrypted password. SSH to them from Steve.
  • Configure an extended ACL on a router subinterface (e.g., Eth2.99) that allows ICMP inbound to the 10.1.99.0/24 network and denies everything else, then verify.
  • Implement VRRP tracking of a physical interface (e.g., Loopback0) to reduce VRRP priority if the tracked object goes down, forcing a failover.

# Verification Commands

# Show VLAN and trunk status
show vlan brief
show interfaces trunk
show interfaces status

# Show EtherChannel (Port-Channel) details
show port-channel summary
show interfaces Port-Channel1

# Show VRRP status for all interfaces
show vrrp

# Show subinterfaces and their IPs
show ip interface brief

# Show ARP and routing table
show ip arp
show ip route

# Verify interface tracking (if configured)
show vrrp track
